YVFRBPG-19x1.0+2x1.0P+2x4组合扁电缆

简要描述：硅橡胶电线电缆橡套电线电缆扁平电缆系列特种扁电缆系列组合式扁平电缆适用交流额定电压450V/70V及以下的移动式电气设备中，扁型结构特别适用于频繁弯曲的场合，不

基础信息

产品型号

YVFRBPG

生产厂家

0.6/1KV

发布时间

2026-07-04

浏览次数

产品分类

PRODUCT CLASSIFICATION

新闻中心

News Center

详细介绍

硅橡胶电线电缆

橡套电线电缆

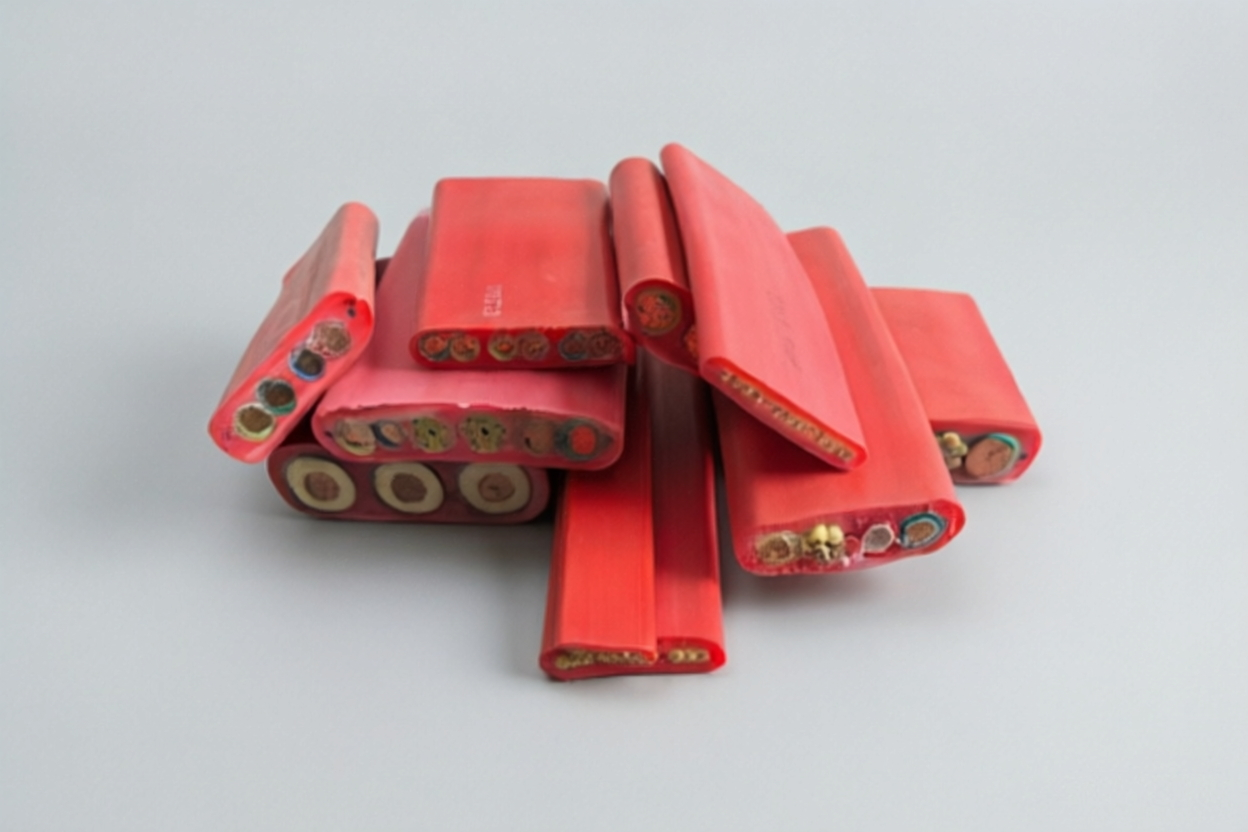

扁平电缆系列

特种扁电缆系列

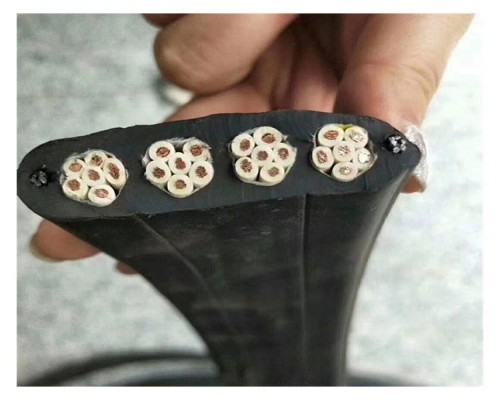

组合式扁平电缆适用交流额定电压450V/70V及以下的移动式电气设备中，扁型结构特别适用于频繁弯曲的场合，不扭结，折叠整齐，如行车。常用于发电、冶金、化工、港口等恶劣环境下移动电器设备之间电器连接。
YVFRBG 扁平电缆其他规格尺寸
电缆型号电压KV 电缆规格mm2 电缆外型尺寸㎜电缆弯曲半径㎜电缆参考重量kg/m 抗拉强度N/M
YVFBG 0.45/0.75 14×1.0+2×1.0P+2×4 46×15 300 0.983 17732
YVFBG 0.45/0.75 16×1.0+2×1.0P+2×4 47×15 300 1.0895 18575
YVFBG 0.45/0.75 19×1.0+2×1.0P+2×4 49×15 300 1.285 19837
YVFBG 0.45/0.75 20×1.0+2×1.0P+2×4 50×16 320 1.324 20258
YVFBG 0.45/0.75 21×1.0+2×1.0P+2×4 51×16 320 1.408 20679
YVFBG 0.45/0.75 22×1.0+2×1.0P+2×4 52×16 320 1.479 21100
YVFBG 0.45/0.75 23×1.0+2×1.0P+2×4 53×17 340 1.524 21521
YVFBG 0.45/0.75 24×1.0+2×1.0P+2×4 54×17 340 1.619 21942
YVFBG 0.45/0.75 28×1.0+2×1.0P+2×4 62×17 340 2.128 23626
YVFBG 0.45/0.75 37×1.0+2×1.0P+2×4 75×17 340 2.604 27415
YVFBG 0.45/0.75 14×1.5+2×1.5P+2×4 51×16 320 1.469 20680
YVFBG 0.45/0.75 16×1.5+2×1.5P+2×4 55×17 340 1.578 21942
YVFBG 0.45/0.75 19×1.5+2×1.5P+2×4 58×18 360 1.699 23837
YVFBG 0.45/0.75 20×1.5+2×1.5P+2×4 59×18 360 1.786 24469
YVFBG 0.45/0.75 21×1.5+2×1.5P+2×4 60×19 380 1.834 25100
YVFBG 0.45/0.75 22×1.5+2×1.5P+2×4 61×19 380 1.907 25731
YVFBG 0.45/0.75 23×1.5+2×1.5P+2×4 61×19 380 1.965 26365
YVFBG 0.45/0.75 24×1.5+2×1.5P+2×4 72×19 380 2.204 26995
YVFBG 0.45/0.75 28×1.5+2×1.5P+2×4 74×19 380 2.376 29520
YVFBG 0.45/0.75 37×1.5+2×1.5P+2×4 97.5×19 380 2.842 35204
YVFBG 0.45/0.75 14×2.5+2×2.5P+2×4 59×19 380 1.956 27350
YVFBG 0.45/0.75 16×2.5+2×2.5P+2×4 60×19 380 2.156 29450
YVFBG 0.45/0.75 19×2.5+2×2.5P+2×4 61×19 380 2.208 32600
YVFBG 0.45/0.75 20×2.5+2×2.5P+2×4 62×20 400 2.259 33650
YVFBG 0.45/0.75 21×2.5+2×2.5P+2×4 63×20 400 2.308 34700
YVFBG 0.45/0.75 22×2.5+2×2.5P+2×4 66×22 440 2.392 35750
YVFBG 0.45/0.75 23×2.5+2×2.5P+2×4 66×22 400 2.406 36800
YVFBG 0.45/0.75 24×2.5+2×2.5P+2×4 80×20 400 2.47 37850
YVFBG 0.45/0.75 28×2.5+2×2.5P+2×4 78×20 400 2.958 42050
YVFBG 0.45/0.75 37×2.5+2×2.5P+2×4 115.5×20 400 3.556 51500
加光纤通讯扁平电缆

电缆型号电压KV 电缆规格mm2 电缆外型尺寸㎜电缆弯曲半径㎜电缆参考重量kg/m 抗拉强度N/M
YVFBG 0.45/0.75 19×1.0+2×1.0P+6FO+2×4 60×15 300 1.4572 20258
YVFBG 0.45/0.75 23×1.0+2×1.0P+6FO+2×4 68×17 340 1.8579 21942
YVFBG 0.45/0.75 24×1.0+2×1.0P+6FO+2×4 72×18 360 2.0072 22363
YVFBG 0.45/0.75 19×1.5+2×1.5P+6FO+2×4 72×18 360 1.98 24258
YVFBG 0.45/0.75 23×1.5+2×1.5P+6FO+2×4 79×18 360 2.151 26784
YVFBG 0.45/0.75 24×1.5+2×1.5P+6FO+2×4 85×18 360 2.55 27415
YVFBG 0.45/0.75 19×2.5+2×2.5P+6FO+2×4 78.5×19 380 2.34 33020
YVFBG 0.45/0.75 23×2.5+2×2.5P+6FO+2×4 91×20 380 2.956 37220
YVFBG 0.45/0.75 24×2.5+2×2.5P+6FO+2×4 91×21 380 3.32 38270

包装说明: 盘装
价格说明: 电议
产品规格: 应用户要求。
